COLLABORATIVE ROBOTS
CS Series Cobots
Quality collaborative robots for repetitive tasks at a reasonable price, backed by local service and spares in Australia and New Zealand.
Available Models
Choose the model that fits your application
CS620 Cobot Arm
Payload20 kg
Reach1800 mm
Arm Weight60 kg
IP RatingIP65 (optional IP68)

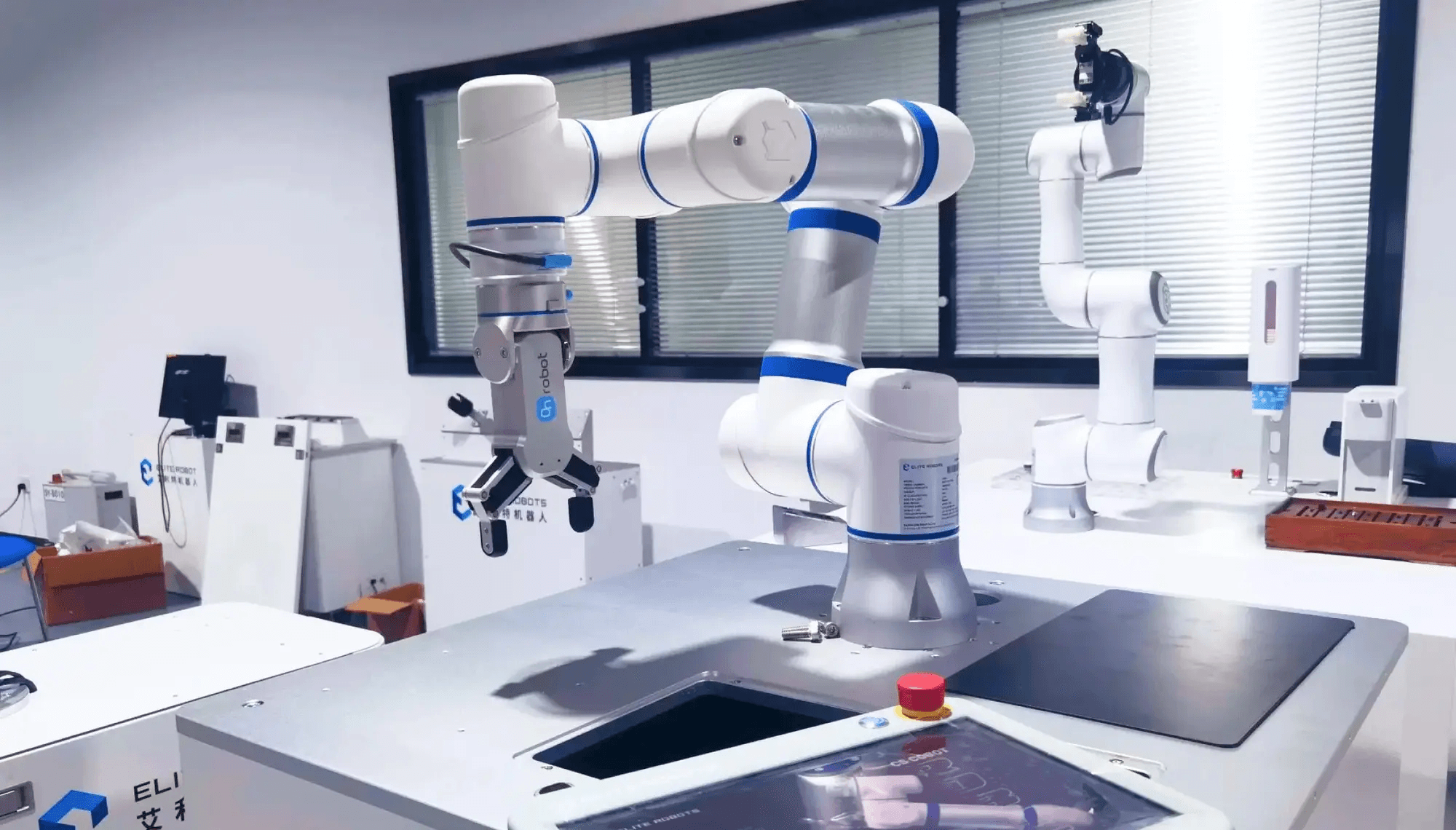

CS66 Cobot Arm
Payload6 kg
Reach914 mm
Arm Weight20 kg
IP RatingIP65 (optional IP68)

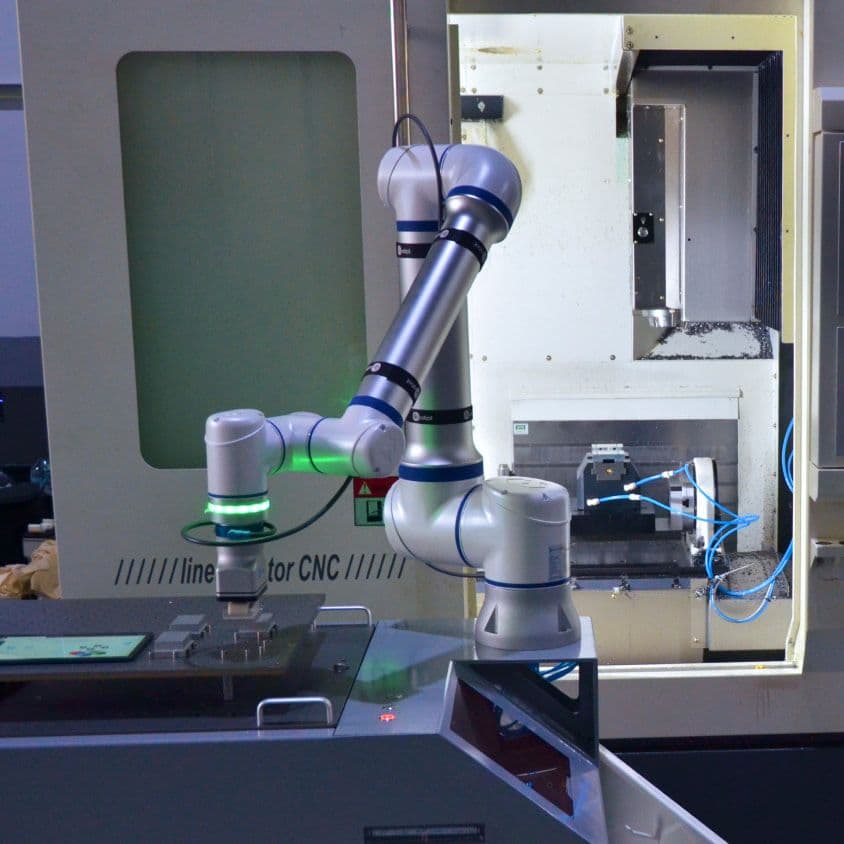

CS612 Cobot Arm
Payload12 kg
Reach1304 mm
Arm Weight34 kg
IP RatingIP65 (optional IP68)
CS63 Cobot Arm
Payload3 kg
Reach624 mm
Arm Weight15 kg
IP RatingIP65 (optional IP68)
Cobot Arms - CS Series Accessories
Compatible accessories for enhanced functionality
CPF10 Fixed Palletiser Station — Sensor Ready
Loading Capacity14 boxes/minute with dual vacuum cups
SetupQuick setup and zero programming
Cabinet OptionsStainless cabinetry available
Palletising TypeMixed SKU palletising
Max Pallet Size (CS620)1200L × 1200W × 1700H mm
Max Pallet Size (CS625)1200L × 1200W × 1600H mm
Max Pallet Size (CS530H)1200L × 1200W × 1600H mm
CPF10 Fixed Palletiser Station — Sensor Ready
CPL07 Telescopic Lift Station — Sensor Ready
Loading CapacityUp to 8 cycles per minute lifting up to 14 kg
Stacking Height1700 - 2400 mm
SetupQuick setup and zero programming
Cabinet OptionsStainless cabinetry available
Palletising OptionsTop and side lifting
Max Pallet Size (CS620)1200L × 1200W × 2400H mm
Cobot Reach1800 mm

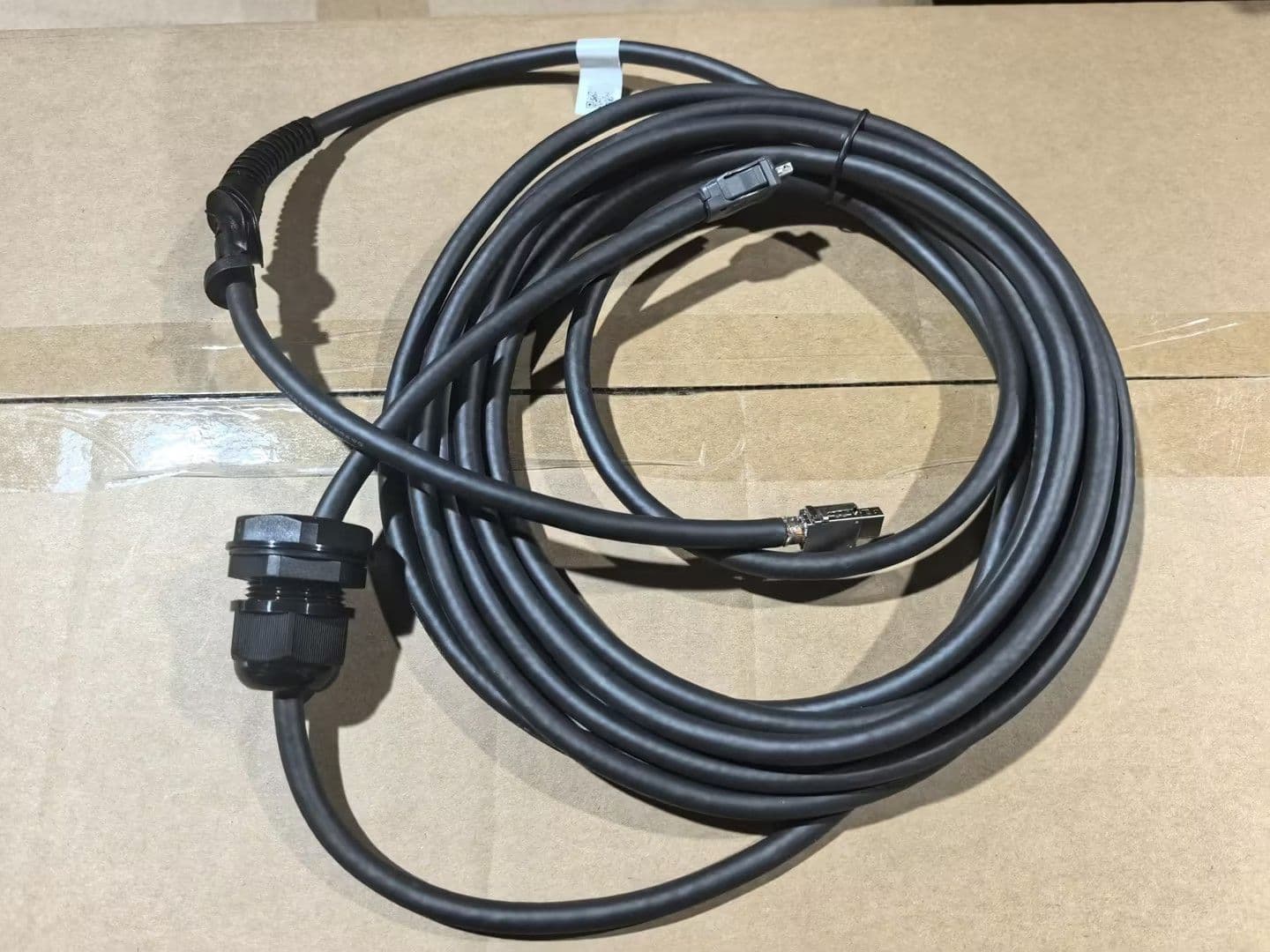

Pendant Cable 5.5 m
Cobot Arms - CS Series Features
- Designed for fast deployment with minimal integration complexity
- Safe collaborative operation - no safety cages required
- Easy drag-and-drop programming interface
- Software included - no $20-30K add-ons
- IP65 protection for dusty environments. IP68 available
- Compact footprint fits in tight spaces
- Fast ROI - typically 12-18 months
- Spare parts available locally for next day shipment
- 1-year parts-only warranty, with extensions available to 4 years
